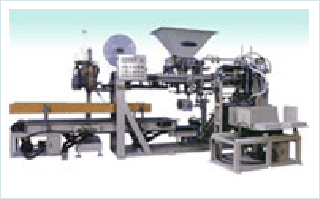

| <Air Cylinder Type> |

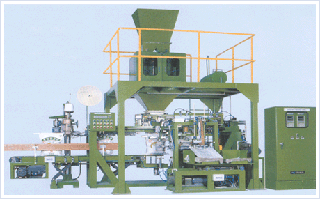

<Servo Motor Type> |
|
| |
 |
| 생산량과 계량호퍼 및 Bag 공급방식에 따라 Air Cylinder 방식과
Servo Transfer 방식이 있습니다. |
| |
 |
| Model |
JS-AB700
|
| Capacity
|
720~800bag/hr(10kg/bag)
|
| 700~750bag/hr(20kg/bag)
|
| 1,200bag/hr(Servo
type) |
| Weighing
Method |
2~3
Step Control, Loadcell Type |
| Weighing
Accuracy |
±1/1,000
~ 1/2,000 of Full Scale |
| Kind
of Bag |
Paper,
PE, PE/PP |
| Air
Consumption |
980Nl/min(4~6kg/㎠)
|
| Power
Source |
AC220/380V,
60Hz, 5kw/hr |
|
|
| |
|
| |
 |
| |
| |
 |
1) Auto Packer Scale
2) Auto Bagging Machine
3) Sewing or Sealing Machine
4) Auto Checker, Metal Detector,
Bag Flattener
5) Feeding Conveyor System
6) Robot System
7) Pallet Dispenser
8) Feeding Chain Conveyor
9) Control Panel
|
| |
|
|
| |
 |
| |
|
 |
|
Auto Packer Scale

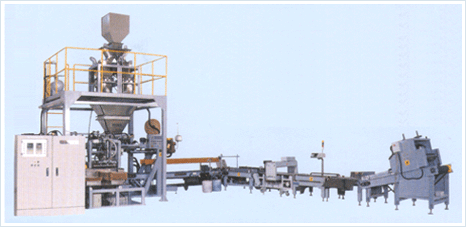

Auto Packing System(JS-AB700)
Feeding Conveyor System

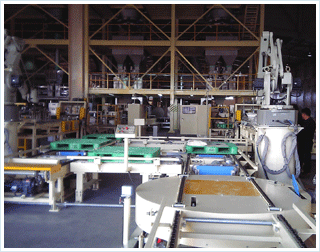

Robot & Palletizer System
Control Panel
적용범위 - Resin, Feed, Fertilizer,
Powder, Particle, etc. |
| |
|
|
| |
| |
|
|
